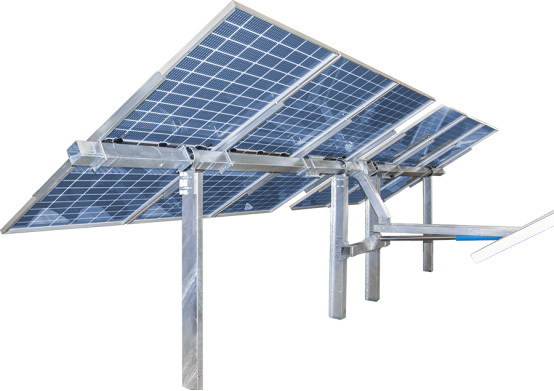

Photovoltaic bracket

Application: A part of photovoltaic system, support the panel.

Email:

lijh@hbtcxcl.com

wechat/whatsapp:

8615612008965

Inquire Now

Product Catalog

Still deciding? Get samples first, Contact US !

View similar products

Photovoltaic Steel Structure

Tag list

Pv Support Bracket

Product Description

Application: A part of photovoltaic system, support the panel.

Material：Q235B-Q355B、SD402、SD550、SD350

C-shaped steel
Size	Thickness(mm)	Material	Finish
C 60	2.0-2.5	Q235B-Q355B	Hot dip galvanizing
C 70	2.0-2.5	Q235B-Q355B	Hot dip galvanizing
C 80	2.0-2.5	Q235B-Q355B	Hot dip galvanizing
C 90	2.0-2.5	Q235B-Q355B	Hot dip galvanizing
C 110	2.0-2.5	Q235B-Q355B	Hot dip galvanizing
C 120	2.0-2.5	Q235B-Q355B	Hot dip galvanizing
C 140	2.0-2.5	Q235B-Q355B	Hot dip galvanizing
C 160	2.0-2.5	Q235B-Q355B	Hot dip galvanizing
C 60	1.6-2.5	SD402、SD550、SD350	Hot dip galvanizing
C 70	1.6-2.5	SD402、SD550、SD350	Hot dip galvanizing
C 80	1.6-2.5	SD402、SD550、SD350	Hot dip galvanizing
C 90	1.6-2.5	SD402、SD550、SD350	Hot dip galvanizing
C 110	1.6-2.5	SD402、SD550、SD350	Hot dip galvanizing
C 120	1.6-2.5	SD402、SD550、SD350	Hot dip galvanizing
C 140	1.6-2.5	SD402、SD550、SD350	Hot dip galvanizing
C 160	1.6-2.5	SD402、SD550、SD350	Hot dip galvanizing

Operating:

1.Storage: Products should be stored in a dry and ventilated warehouse to prevent rust and pollution. Products should be classified and stacked, with labels indicating the type, specification and batch number, and placed securely to prevent deformation and damage.

2.Loading: When lifting, components should be prevented from damage or deformation. When loading, they should be placed stably, in a moderate position, and reliably reinforced. Danger warning signs should be hung when transporting overlong, overwide, and overhigh components. Pay attention to protecting the safety of roads, bridges, communications, power and other facilities.

3.Transport: Steel structure components must be properly tied during transportation and hoisting to prevent deformation, damage and breakage of the galvanized layer.

The Photovoltaic Bracket is a critical component in the solar energy industry, designed to securely mount photovoltaic (PV) panels onto various surfaces. This bracket serves as the foundation for solar panel installations, ensuring stability and optimal performance of the solar energy system. Typically made from high-quality materials such as aluminum or stainless steel, the photovoltaic bracket is engineered to withstand harsh environmental conditions and provide long-lasting support.

The bracket's design is versatile, allowing for installation on roofs, walls, and ground surfaces, depending on the specific needs of the solar energy system. Its adjustable features enable precise alignment of the solar panels to capture the maximum amount of sunlight throughout the day. This flexibility is crucial for achieving optimal energy efficiency and ensuring that the solar panels operate at peak performance.

One of the key advantages of the photovoltaic bracket is its ease of installation. The bracket is often designed with pre-drilled holes and standardized mounting points, which streamline the installation process and reduce the need for additional tools or modifications. This user-friendly design helps to minimize installation time and labor costs, making it a practical choice for both residential and commercial solar projects.

Durability is another critical aspect of the photovoltaic bracket. The bracket is engineered to resist corrosion, UV radiation, and other environmental factors that can affect its performance over time. This durability ensures that the bracket will continue to provide reliable support for the solar panels, even in challenging weather conditions such as heavy rain, strong winds, or extreme temperatures.

Additionally, the photovoltaic bracket is designed with safety in mind. Its robust construction and secure mounting options help to prevent accidents and ensure that the solar panels remain securely in place. This safety feature is essential for protecting both the solar energy system and the property on which it is installed.
